Y2Power · Available for Irish venues
20 Bay20-bay mobile charging locker
Individual keypad compartments for venues that need more phone storage in one installation.
Charging lockersConfiguration advice
Model details
20 Bay specifications
Use these details to compare the 20 Bay 20-bay mobile charging locker with the rest of the range. The final quotation confirms the supplied configuration.

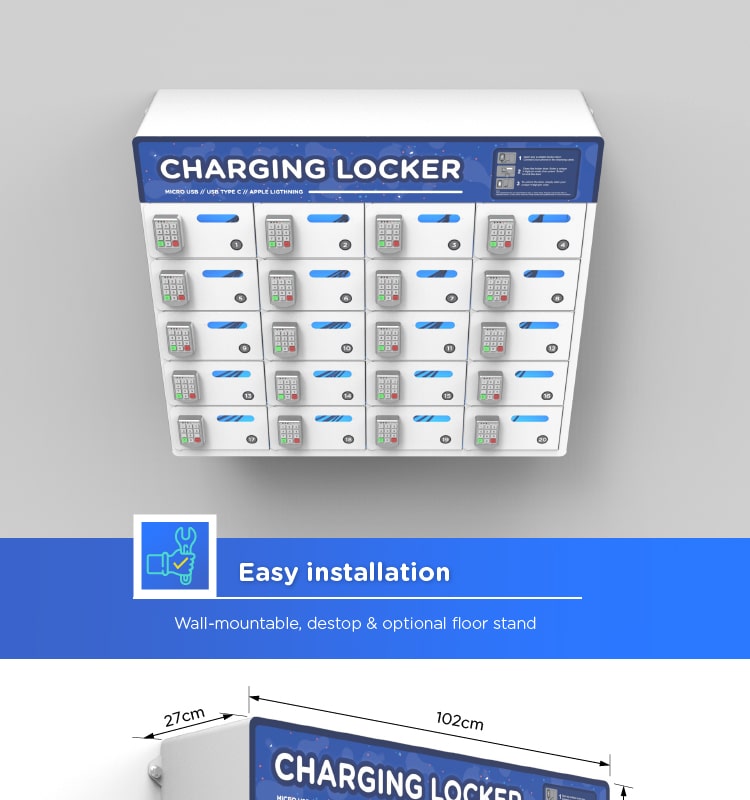

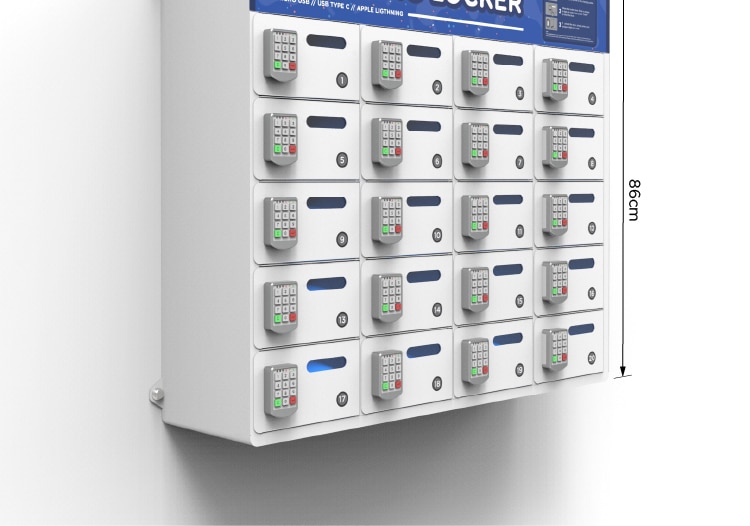

| Dimensions (W x D x H) | 101.7(W)*27.9(D)*90.9(H)cm |
|---|---|
| Weight | 80KG |
| Power Input | AC 100–240V / 50~60Hz |
| Model No. | PL-KP20-Y2 |
| Power Output | Output in each bay: 5V/2.4A Max Power: 240W |
| Detail Specs | Each Locker Box Size: 21.4(W)*12.9(D)*12.8(H)cm No. of Locker Boxes: 20 Housing Material: Cold rolled steel System: Keypad version Color: Black & White Certification: CE & RoHS Operating Temperature and Humidity: 0°C to + 35°C / 20% to 80% Packing information |
Figures follow the manufacturer’s published listing. Dimensions are width × depth × height unless stated otherwise. Options, lead time and availability are confirmed in your proposal.
A closer look
Explore 20 Bay.
Images may show optional stands, displays, branding or payment hardware. Choose these features as part of your specification.
Plan it properly
Installation & everyday use.
Confirm the device size and number of compartments first. Allow room for doors to open, cable access and servicing. Wall-mounted units need suitable structural fixings; floor units need a stable, agreed location. Plan a nearby power supply and any connectivity required by the payment terminal.
What we agree with you
Device compatibility, siting, power, access and the service arrangements all form part of the proposal. For customised units, we also agree artwork and any screen content.
Keep connectors clean and inspect cables regularly. Follow the supplied instructions for cleaning, maintenance and access recovery.
Before you choose
Your questions, answered.
Can this model be customised?
Available options depend on the model. Ask us about the branding, connections, mounting and payment configuration you need. We confirm compatibility before you order.
Will it charge every device?
Charging depends on the connector, supported charging standard and device dimensions. Tell us which phones, tablets or laptops you need to support so we can check the fit and output.
Can I have the data sheet and installation drawing?
Yes—contact us for the current model information and confirmed configuration. The specification table above is a useful starting point; installation dimensions and optional equipment should be checked before site work begins.
How do I get a price?
Send us the model name, quantity, venue and preferred options. We can then prepare a proposal covering the equipment and agreed setup.
Keep comparing
Other options for your venue.
MIA Premium
A compact touchscreen locker for paid or complimentary phone charging. Our featured configuration pairs MIA Premium with a contactless card reader.
STN
Wall-mounted storage and USB-C charging for shared devices in hospitals and workplaces.
TIA
A compact steel locker with individual charging compartments and an optional solar-power setup.
Your location. The right charging setup.
Let’s plan your installation.
Tell us your venue, expected demand and preferred payment method. We’ll help you choose the model, mounting arrangement and options.
