Mirror-Terminal for Presence Detection and Access Control
Mirror is the new presence control terminal by Indaco Project for Access Control and Data Collection.
Mirror is designed to offer Companies not only a different technological choice, but also an aesthetic choice, a choice of innovation, “reflecting” the company style:
- customizable in 6 different styles
- it has a backlit colour display and touch screen to display the clocking in/out made, enter pin codes for access control and reasons for presence detection directly from the terminal
- It fits different personnel identification technologies (RFID, Mifare and biometric proximity readers) and access gates.
- suitable for outdoor installation as it is designed with a watertight enclosure
- It interfaces with the ND24 Personnel Management and Web Presence detection suite and Sesamo access control suite
- possibility of integrated Wi-Fi
MADE IN ITALY FUNCTIONALITY AND DESIGN
When you choose MIRROR, you are installing not only an efficient system but also an industrial design element entirely Made in Italy that characterizes the style and image of the company.
CHOOSE MIRROR IN THE COLOUR THAT REFLECTS YOUR COMPANY
Technical features:
- ABS and Polycarbonate Watertight Moulded Container
- Ethernet 10/100 TCP/IP, UDP, FTP interface
- Two relays
- 240 x 320 TFT colour backlit LCD display and touchscreen
- RFID 125 KHz, 13.56 Mhz/NFC MiFare, biometric
- Touchscreen
- 512 MB DDR3
- Cortex A8 1 GHz
- USB 2.0 ports
- 220 Vac internal power supply
- Size 165 x 158 x 60 mm

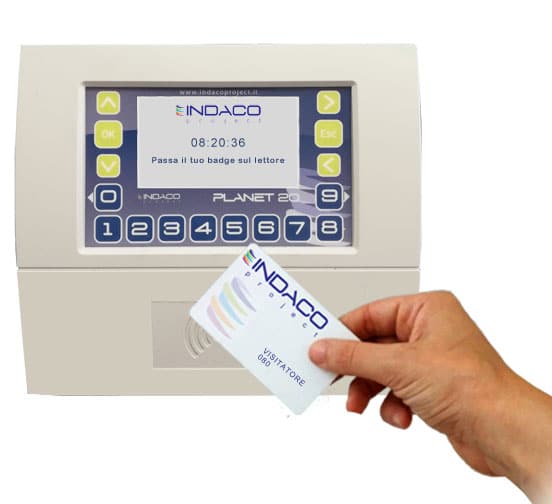

PLANET20
Il Terminale Planet 20 è dotato di display e tastiera per l’inserimento di eventuale codice Pin.
Come tutti i terminali di Raccolta Dati proposti da Indaco Project, anche Planet 20 è totalmente integrato negli applicativi Software sviluppati. Inoltre, grazie all’esperienza maturata sul campo e la conoscenza approfondita degli apparati hardware, Indaco Project è in grado di sviluppare procedure firmware customizzate sul cliente.
Caratteristiche Tecniche:
Contenitore in plastica ABS e Policarbonato
Doppia Antenna Mifare 13,56 MHz
Interfaccia ethernet 10/100 TCP/IP, UDP, FTP
Due relè per attivazione sirene, apertura porte
LCD Mono 128×64 pixel, retroilluminazione a led bianchi
Tastiera a 16 pulsanti
128 MB di memoria RAM DDR2
Microprocessore CortexA8 800 MHz
Audio stereo polifonico
Tastiera a membrana 20 tasti
Alimentazione PoE oppure 9-36 Vdc con alimentatore esterno
Dimensioni 165x158x60
Access Control Terminals – SAT and SAT LIVING
The primary relay is present on board and is used to control the gates located in protected areas. In the case of outdoor applications, it is better to remotely install the activation relay to avoid burglary attempts.
| Container | Moulded in ABS and Polycarbonate |
| Magnetic Reader
|
RFID integrated |
| Interface
|
RS485 or Ethernet for connection to Planet20 or Smile Touch |
| No. 1 Relay
|
For door opening |
| Power supply | 9-36 Vdc |
| Operation | On Line, Off Line |
| SIZE | 130 x 38 x 46 mm |
La cornice, che può essere scelta fra più colori, ne completa l’aspetto e la personalizzazione.
