G-Drink Design
Hydro-lution
The most successful glass-front vending machine of our history renovates its look in a modern, sophisticated yet timeless way. Conceived with a new, brighter LED illumination structure to enhance the visibility of the drinks displayed inside, G-Drink Design is equipped with an innovative, back-lit keypad to ease the selection operations in both luminous and dark venues.
Available in two models, with 9 or 6 selections per shelf, G-Drink Design is geared up with a vertical lift system and all of SandenVendo’s top-notch cooling technologies and an easy door-latching system
- Category: Vending Machines
- Colors: Black

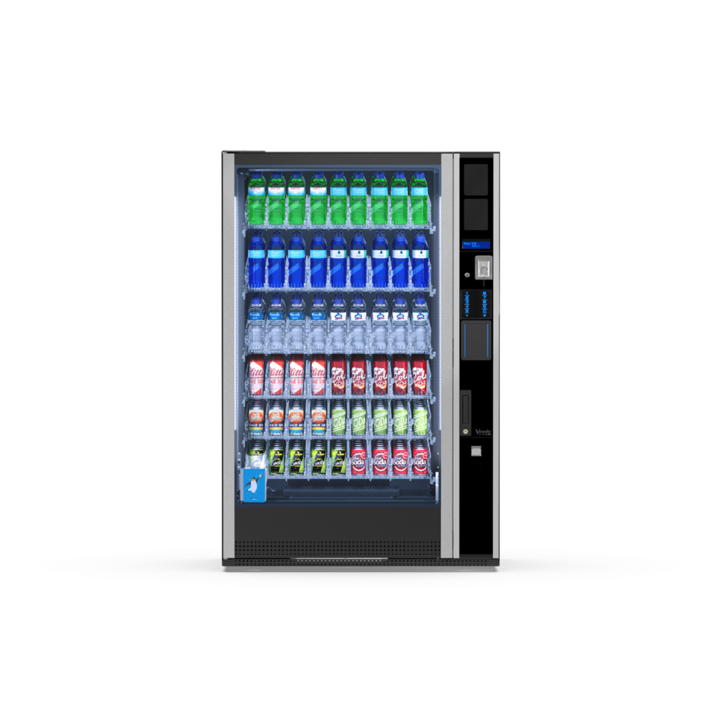

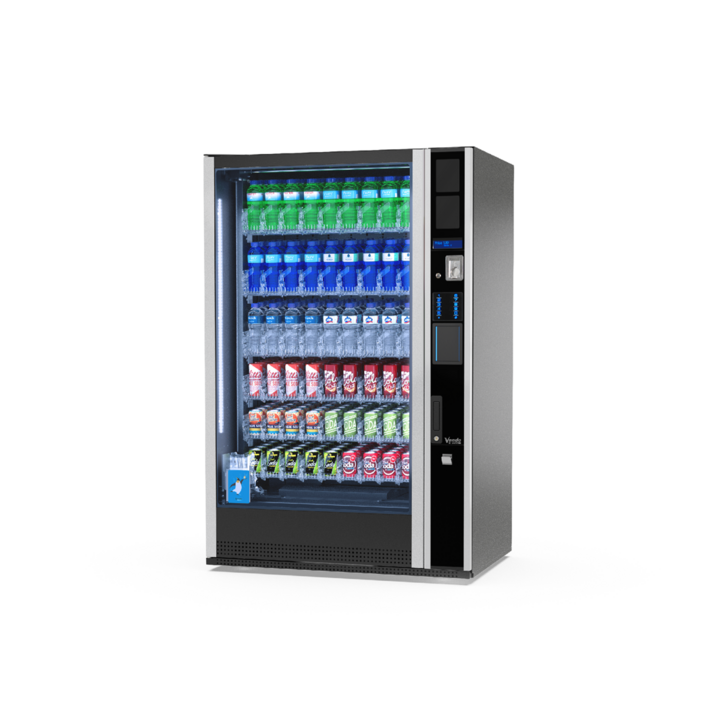

| G-Drink Design 9 Vertical | |
| DIMENSIONS H x W x D (mm) | 1830*x 1215 x 845 |
| WEIGHT (NET – Standard machine without options) | 345 Kg |
| NO. OF SELECTIONS PER SHELF | 9 |
| NO. OF SHELVES | Standard 5 / Max. 7 |
| NO. OF SELECTIONS | Standard 45 / Max. 63 |
| MAX. CAPACITY (0.33 l CANS) |
504 |
| MAX. CAPACITY (0.50 l PET BOTTLES) |
360 |
| PROTOCOL | Executive / MDB |
| COOLING SYSTEM CONTROL | Electronic |
| INTERNAL TEMPERATURE RANGE | +2°C up to +10°C |
| COOLING UNIT | HCD |
| POWER SUPPLY | 230/240 V – 50/60 Hz |
| MAX. POWER CONSUMPTION | 370 W |
| ENERGY CLASS |  |
| ENERGY CONSUMPTION – kWh/annum | 817 |
*With adjustable leveling screw

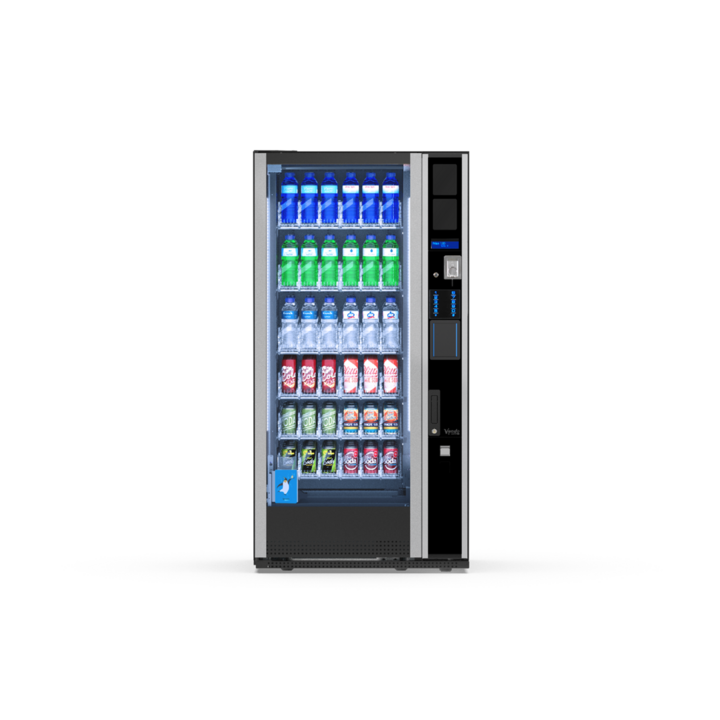

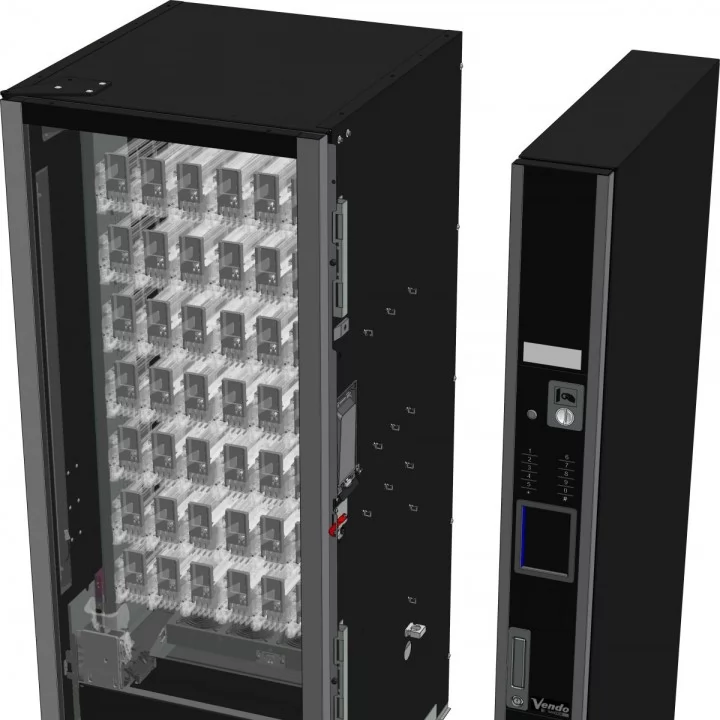

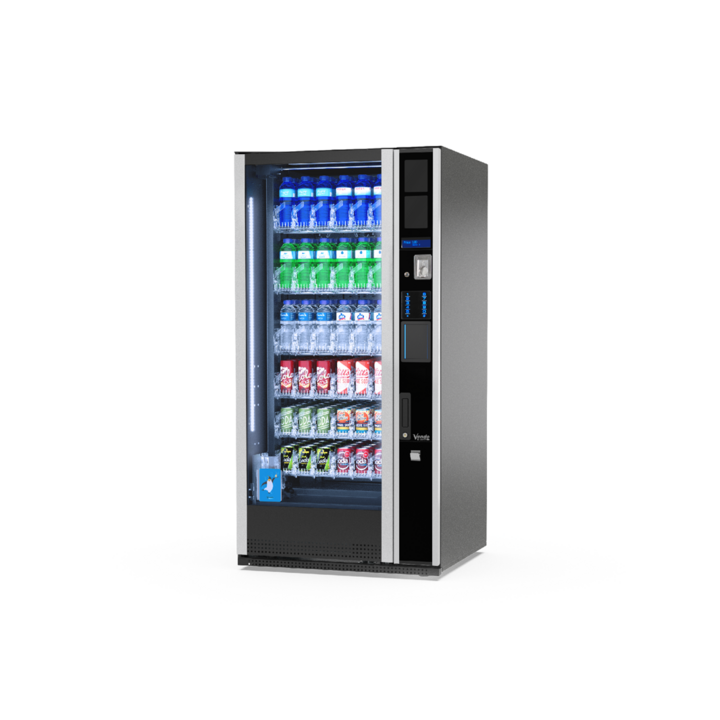

| G-Drink Design 6 Vertical | |
| DIMENSIONS H x W x D (mm) | 1830*x 940 x 845 |
| WEIGHT (NET – Standard machine without options) | 295 Kg |
| NO. OF SELECTIONS PER SHELF | 6 |
| NO. OF SHELVES | Standard 5 / Max. 7 |
| NO. OF SELECTIONS | Standard 30 / Max. 42 |
| MAX. CAPACITY (0.33 l CANS) |
336 |
| MAX. CAPACITY (0.50 l PET BOTTLES) |
240 |
| PROTOCOL | Executive / MDB |
| COOLING SYSTEM CONTROL | Electronic |
| INTERNAL TEMPERATURE RANGE | +2°C up to +10°C |
| COOLING UNIT | HCD |
| POWER SUPPLY | 230/240 V – 50/60 Hz |
| MAX. POWER CONSUMPTION | 370 W |
| ENERGY CLASS | |
| ENERGY CONSUMPTION – kWh/annum | 624 |
