G-Drink Touch

Essentials at your fingertips

Equipped with a vertical lift system and a highly interactive and customizable touch display, G-Drink Touch is the automatic vending machine designed to engage customers and boost your sales.

Created with the aims of a marketing tool, the top-notch touch display holds an attractive, user-friendly multi-selection feature that will persuade customers to purchase more items while providing useful nutritional insights and advertising brand promotions: an advanced control panel that enables you to effortlessly manage the vending machine.

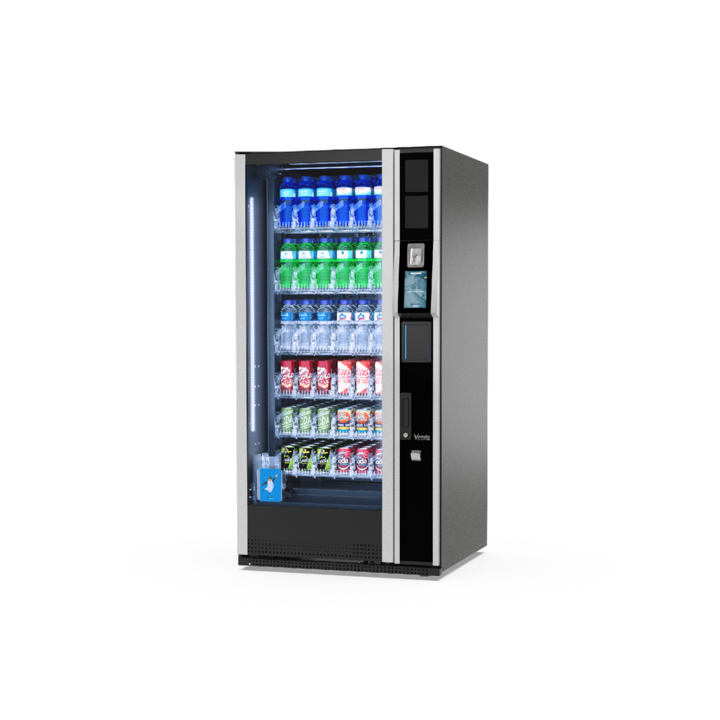

G-Drink Touch 6 Vertical
DIMENSIONS H x W x D (mm)1830* x 940 x 880
WEIGHT (NET – Standard machine without options)295 Kg
NO. OF SELECTIONS PER SHELF6
NO. OF SHELVESStandard 5 / Max. 7
NO. OF SELECTIONSStandard 30 / Max. 42
DISPLAY7” Touch screen
MAX. CAPACITY
(0.33 l CANS)
336
MAX. CAPACITY
(0.50 l PET BOTTLES)
240
PROTOCOLExecutive / MDB
COOLING SYSTEM CONTROLElectronic
COOLING UNITHC2
INTERNAL TEMPERATURE RANGE+2°C up to +10°C
MAX. POWER CONSUMPTION450 W
POWER SUPPLY230/240 V – 50/60 Hz
ENERGY CLASS
ENERGY CONSUMPTION – kWh/annum1330
* With adjustable leveling screw

Options List

SPECIAL CODED LOCK (RIELDA)


LOCK PROTECTION


SAFETY SLIDE COIN INSERT


SECURITY CASH BOX SYSTEM


WALL/FLOOR FIXING KIT


KIT ANTI-VANDALISM


PAYMENT SYSTEM


KIT EVA DTS


VARIOUS FITTING KITS


CUSTOMIZATION


CUSTOMIZED CABINET COLOUR

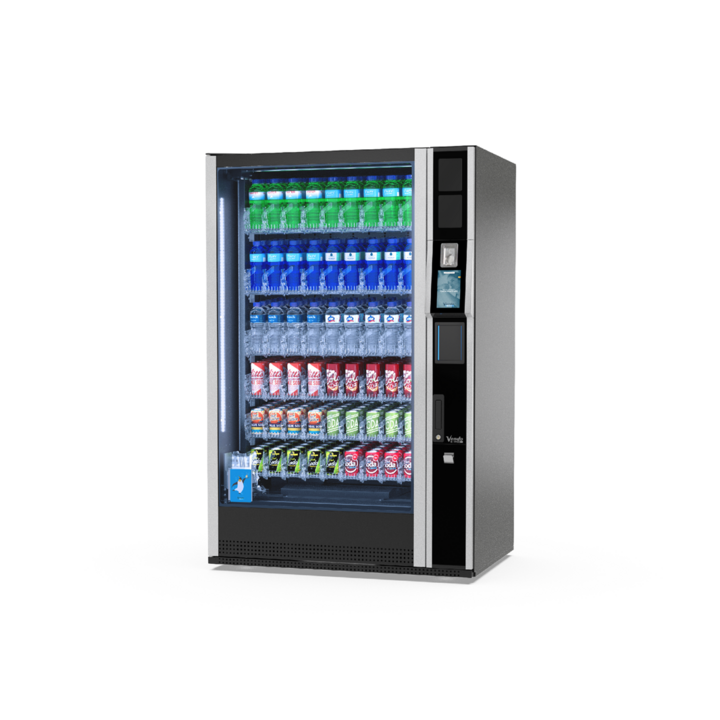

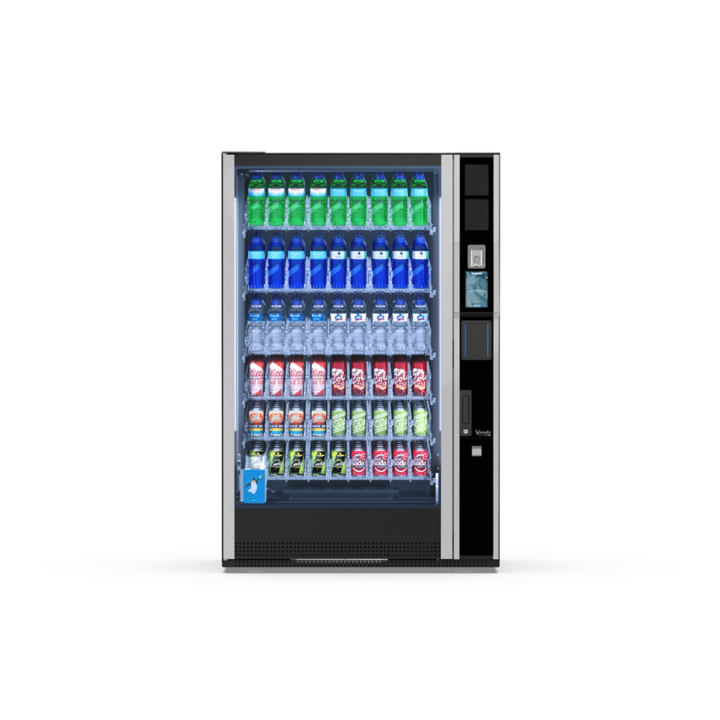

G-Drink Touch 9 Vertical
DIMENSIONS H x W x D (mm)1830* x 1215 x 880
WEIGHT (NET – Standard machine without options)345 Kg
NO. OF SELECTIONS PER SHELF9
NO. OF SHELVESStandard 5 / Max. 7
NO. OF SELECTIONSStandard 45 / Max. 63
DISPLAY7” Touch screen
MAX. CAPACITY
(0.33 l CANS)
504
MAX. CAPACITY
(0.50 l PET BOTTLES)
360
PROTOCOLExecutive / MDB
COOLING SYSTEM CONTROLElectronic
COOLING UNITHC2
INTERNAL TEMPERATURE RANGE+2°C up to +10°C
MAX. POWER CONSUMPTION450 W
POWER SUPPLY230/240 V – 50/60 Hz
ENERGY CLASS
ENERGY CONSUMPTION – kWh/annum1562
* With adjustable leveling screw

Options List

SPECIAL CODED LOCK (RIELDA)


LOCK PROTECTION


SAFETY SLIDE COIN INSERT


SECURITY CASH BOX SYSTEM


WALL/FLOOR FIXING KIT


KIT ANTI-VANDALISM


PAYMENT SYSTEM


KIT EVA DTS


VARIOUS FITTING KITS


CUSTOMIZATION


CUSTOMIZED CABINET COLOUR


×
